Kyosho Mad Bug VE 1/10 EP 4WD Truck ReadySet

Kyosho Mad Bug VE 1/10 EP 4WD Truck ReadySet

August 20th, 2014

Matt

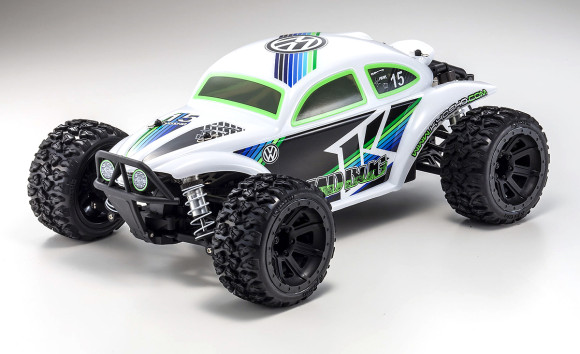

Newly designed electric off-road racing VW Bug!

For off-road racing fans, this machine delivers the best performance vs cost around!

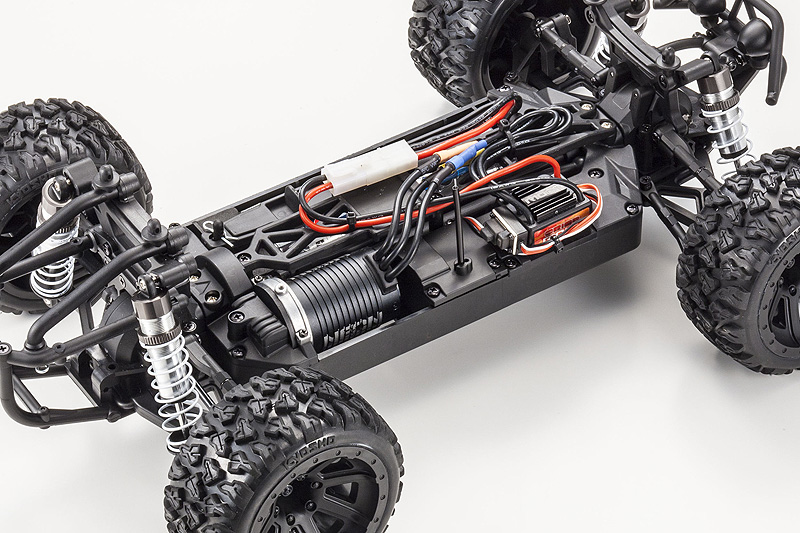

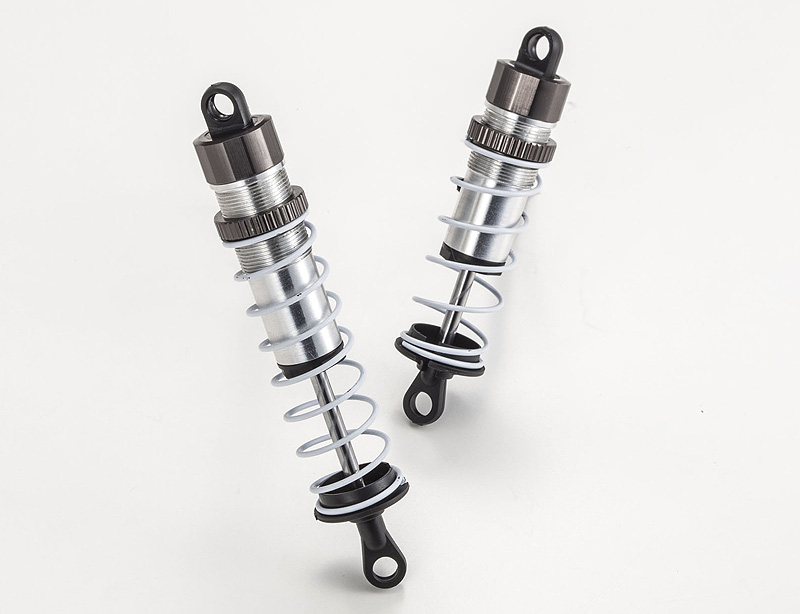

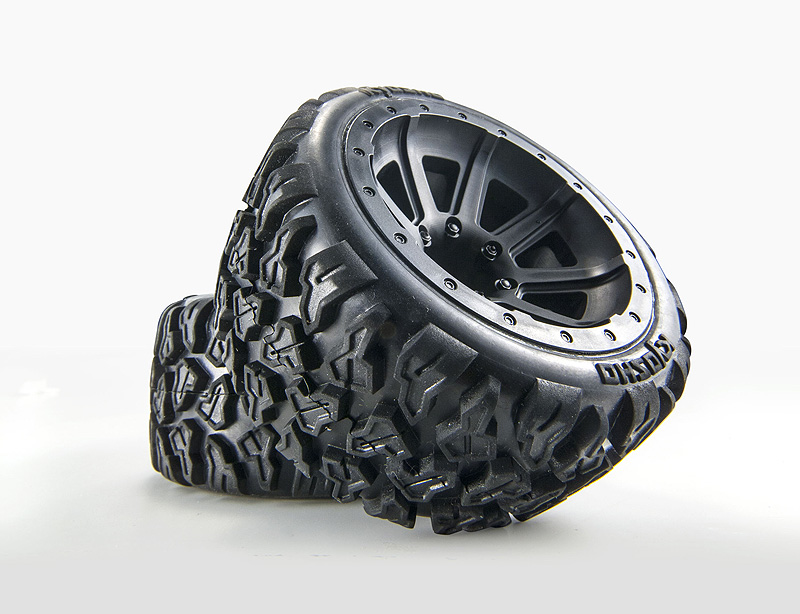

Shaft driven 4WD can handle just about any type of rough terrain with ease. Features large 100mm diameter tires on inch up wheels supported by aluminum oil shocks together with waterproof speed controller, brushless motor and servo as standard. The bathtub chassis is equipped with heavy-duty suspension, slipper clutch and metal diff gears in the high durability drive train that can take plenty of punishment from hard driving. Team Orion speed controller and brushless motor combine to deliver the power to take on any course as aggressively as you can. Adjustable toe and camber angles on front and rear upper arms and steering rod provide plenty of scope for fine-tuning your setup. For performance vs cost, this machine is a certain winner!

Fully Assembled Chassis
SYNCRO KT-200 2ch Radio System Installed.

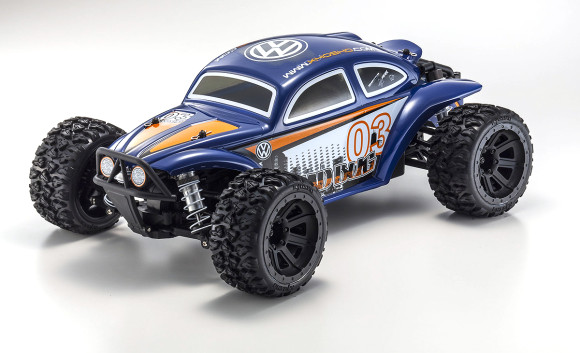

Completed pre-painted VW Bug body with decals attached.

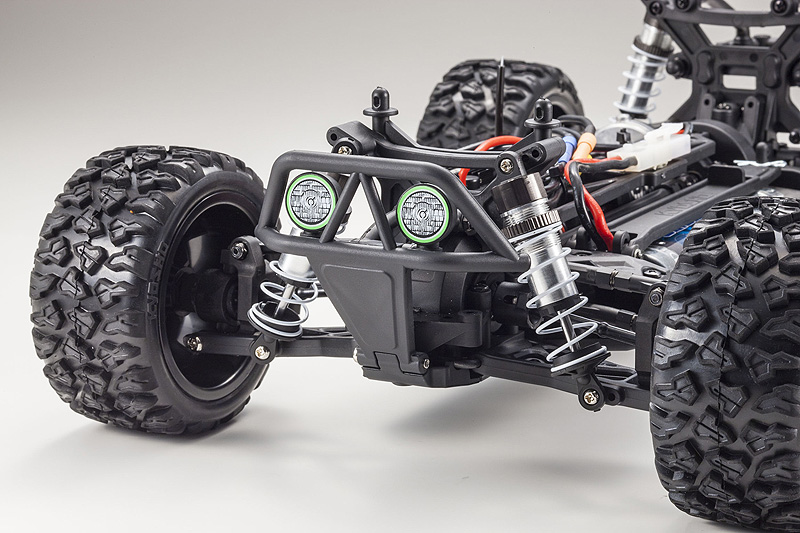

Features adjustable front/rear upper suspension arm.
Equipped with adjustable steering linkage.

A Readyset is a fully assembled model that includes nearly everything you need to run. Body Color scheme is complete so you can start operating the model without delay.

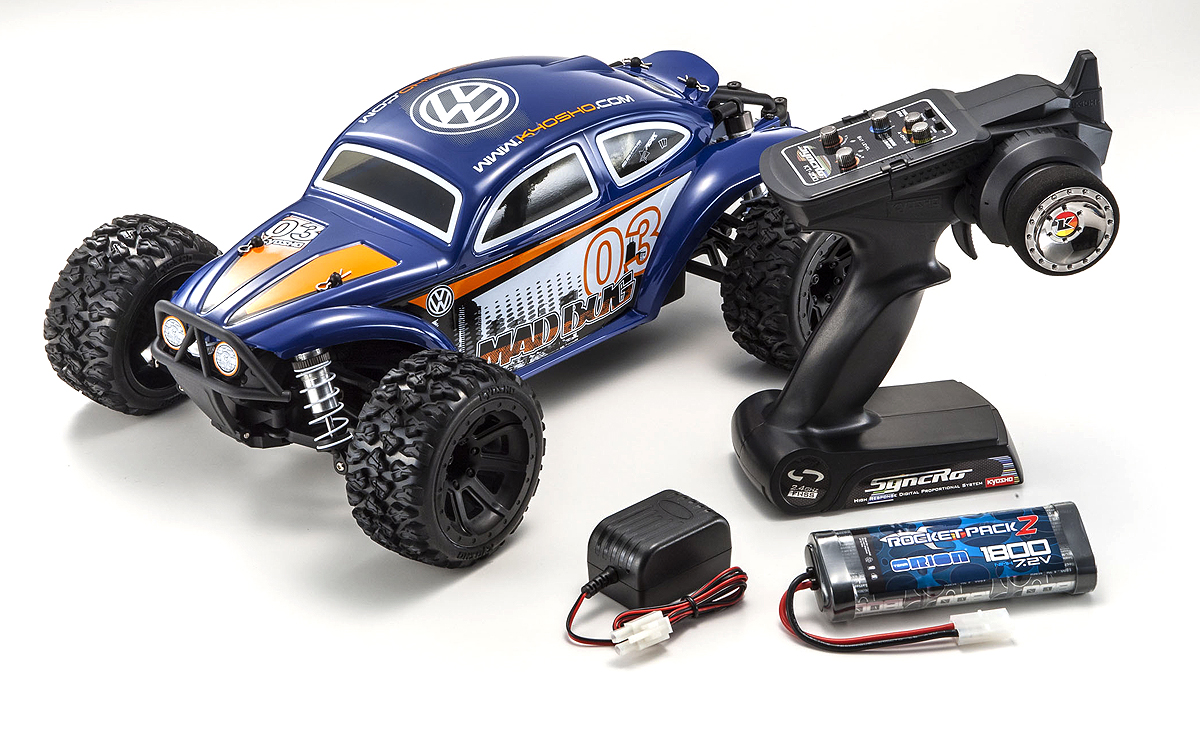

ReadySet Contents

Factory assembled chassis with pre-installed radio system
Pre-painted assembled body with decals applied
Syncro KT-200 transmitter
Hex wrench (1.5mm)
Cross wrench

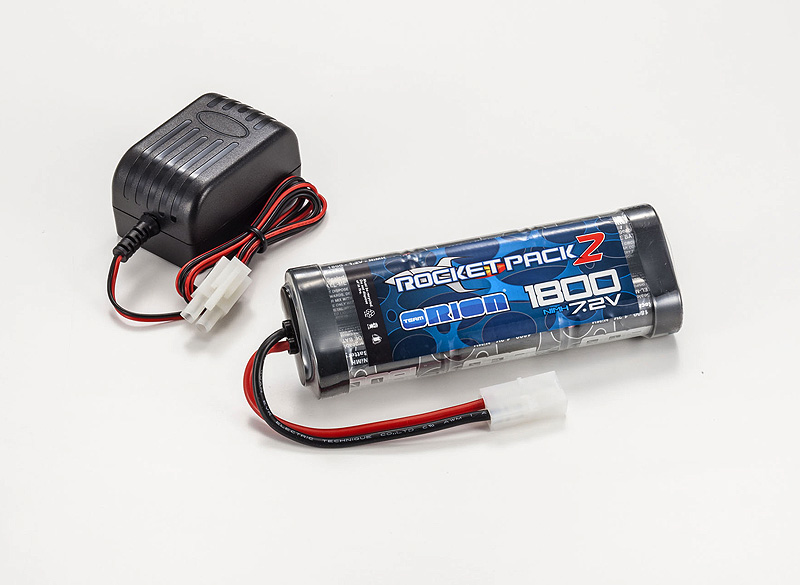

Team Orion 1800Mah NiMH battery
Wall charger

＜ Required for Operation ＞

4 x AA sized alkaline batteries for transmitter

Chassis Technical Data
Length: 395mm
Width: 287mm
Height: 152mm
Wheelbase: 272mm
Tread (F/R): 213mm/206mm
Tire(F/R): 101mm × 50mm / 101mm × 50mm
Gear Ratio: 9.62:1
Weight: 1,764g (approx.)
Motor: Orion NEON ONE brushless motor (KV-2400)
Radio System: Synclo KT-200
