NEW! Factory Team Brass Bulkheads for the B5 and B5M

July 18th, 2014 Kevin

These new brass bulkheads for the RC10B5 and RC10B5M increase your weight configuration possibilities, adding weight to the front for more steering, or providing chassis balancing. These direct-replacement front bulkheads, sold separately, come in standard 25 degrees and 30 degrees of kickup. Use the 30-degree bulkhead for increased corner-entry steering.

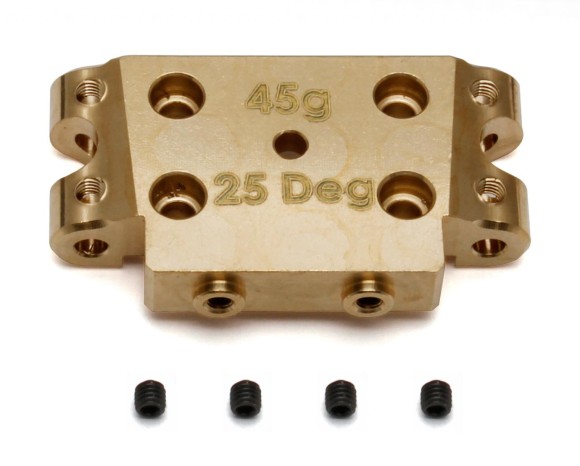

91365.ps_lg

#91365
Factory Team Brass Bulkhead, 25 deg.
UPC: 784695 913653
Available Now

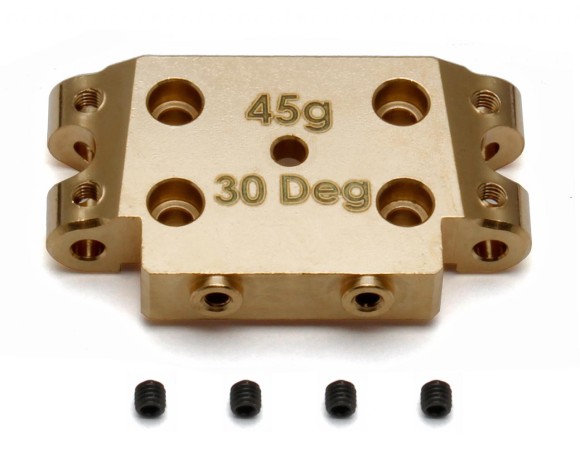

91366.ps_lg#91366
Factory Team Brass Bulkhead, 30 deg.
UPC: 784695 913660
Available Now

Remember to add shims to the steering block to match the kickup angle adjustment:



Kickup Angle Less Aggressive
Bumpsteer Shims		 Standard
Bumpsteer Shims		 More Aggressive
Bumpsteer Shims
25 deg. 1mm None None
30 deg. 3mm 2mm 1mm
