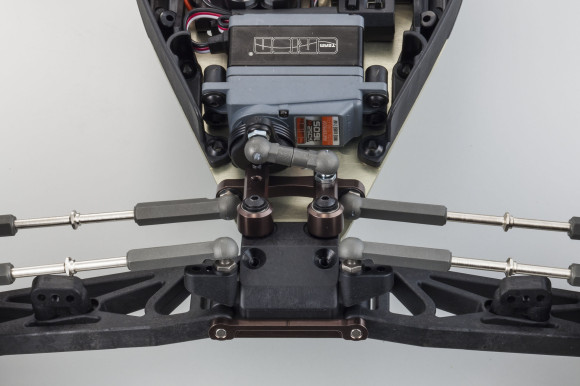

Optional aluminum steering parts UMW701
& UMW702 are included in the kit!

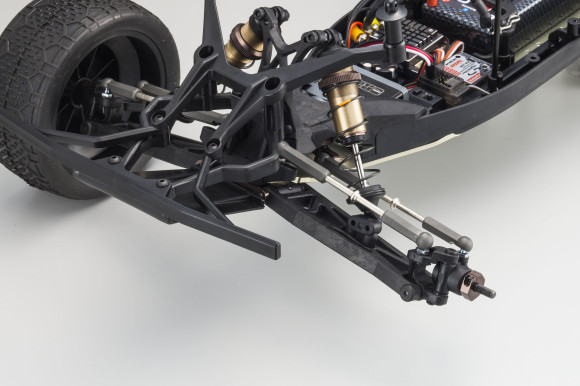

New gull-wing style shock mounting
position in center. The standard holes are
still available on the same arms!

Aluminum gunmetal anodized clamp style
wheel hexes are included all the way
around.

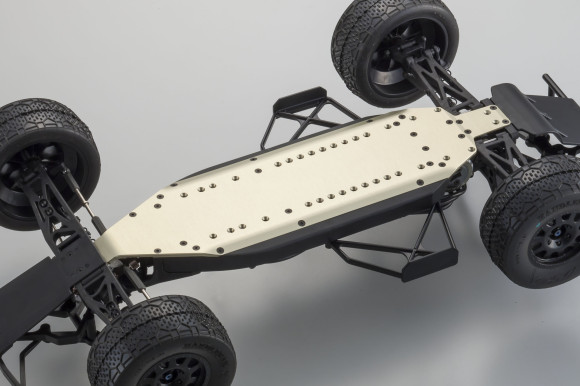

Extended shortcourse length 7075 hard
anodized aluminum chassis. Virtually
unlimited battery positioning up and down
the chassis with standard, shorty, or
saddle pack batteries.

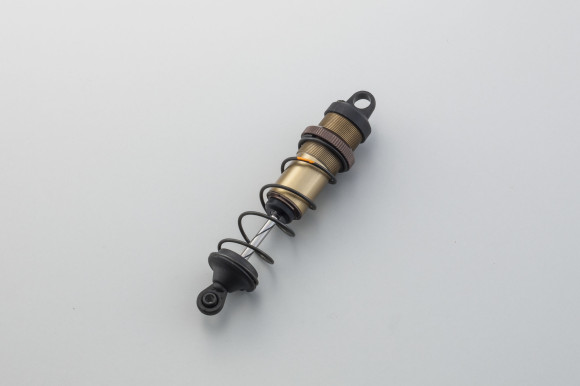

Velvet coated “Big Bore” shocks with
bleeder style caps and genuine X-gear
springs. Orange front and Red rear.

ESC pedestal from the RT6 for added
traction in rear motor setting.

Allows for both Mid Motor and Rear Motor configurations. All items are included in the kit.

Allows for both Mid Motor and Rear Motor configurations. All items are included in the kit.
- 7075 Hard Anodized chassis
- Allows both mid and rear motor configuration.
- Compatible with various types of battery packs. (Straight, Separate and shorty)
- Rear gull wing type lower suspension arm for most efficient grip.
- Proven RB6 steering crank system allowing linear controls. UMW701 and UMW702 are included.
- Velvet coated big bore shocks with new “bleeder” style caps.
- X-Gear Ball diff grease, hi-graphite grease and shock springs included.
- Various Option parts available.
- X-Gear Springs. (Front Orange / Rear Red)
- Length; 550mm
- Width; 296mm
- Height; 150mm
- Wheelbase; 330mm
- Tread (F/R); 246/248mm
- Tire (F/R); ΦNot Included
- Tire width : Not Included
- Gear Ratio; 2.6:1
- Weight; approx. 2000g
- Chassis Kit
- 1.5mm/2.0mm/2.5mm Hex Wrench
- Cross wrench
- X-Gear Ball diff grease, hi-graphite grease and shock springs
- Tx-Rx
- Servo
- ESC and Motor
- Pinion Gear
- Tires, wheels and inner sponge
- Battery and charger for Tx and ESC
- Body shell (BODYLESS KIT)
- Tools
- Paint for Body
