The original RSx Response/Power servos took a servo to a higher level upon it’s release. The RSx2 is the further development of the RSx series and we have raised the bar again.

• Precision of gears and the aluminum case are within 0.01mm tolerance.
• Power versions now include a stainless steel gear along with aluminum gears to further increase the strength.
• Re-working of the servo amplifier has created a more linear feel with today’s faster transmitter systems.

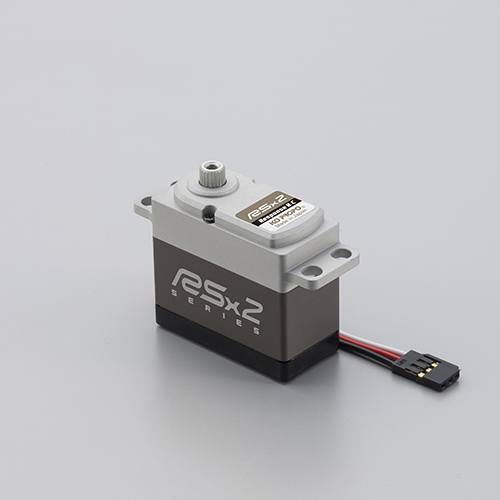

RSx2 Response H.C.
Part No.30106

Speed Type servo with aluminum upper case (Hard Case).

• Speed: 0.06s@60°(7.4V), 0.07s@60°(6.0V)
• Torque: 17.6kg-cm(7.4V), 14.5kg-cm(6.0V)
• Size: 41 x 37.5 x 20mm
• Weight: 70.5g

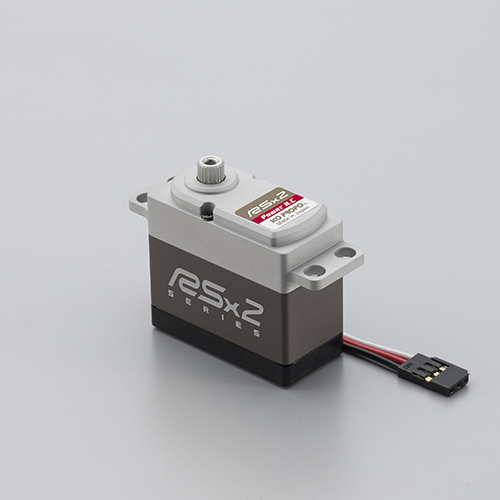

RSx2 Power H.C.
Part No.30107

Torque Type servo with aluminum upper case (Hard Case).

• Speed: 0.11s@60°(7.4V), 0.13s@60°(6.0V)
• Torque: 31.6kg-cm(7.4V), 26.3kg-cm(6.0V)
• Size: 41 x 37.5 x 20mm
• Weight: 70.5g 0.13s

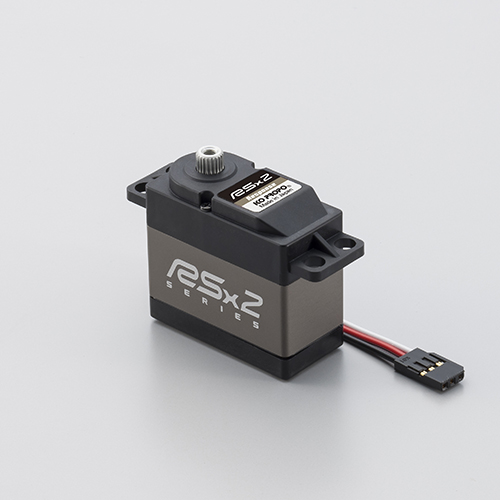

RSx2 Response
Part No.30108

Speed Type servo.

• Speed: 0.06s@60°(7.4V), 0.07s@60°(6.0V)
• Torque: 17.6kg-cm(7.4V), 14.5kg-cm(6.0V)
• Size: 41 x 37.5 x 20mm
• Weight: 65.6g

RSx2 Power
Part No.30109

Torque Type servo.

• Speed: 0.11s@60°(7.4V), 0.13s@60°(6.0V)
• Torque: 31.6kg-cm(7.4V), 26.3kg-cm(6.0V)
• Size: 41 x 37.5 x 20mm
• Weight: 70.5g 0.13s
