Tamiya GoPro Monster S.S. Swift – M05 coming soon

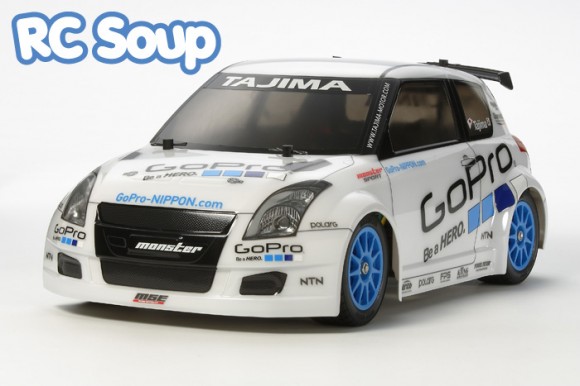

The GoPro Monster Sport Super Swift is a 6-time consecutive winner of the Pikes Peak International Hill Climb race held in the U.S. It is based on the Suzuki Swift and custom-built by Monster Sport. The 4WD car features wind tunnel-tested aerodynamics and a 400hpplus 1.9-liter engine.

go-pro-m05-swift

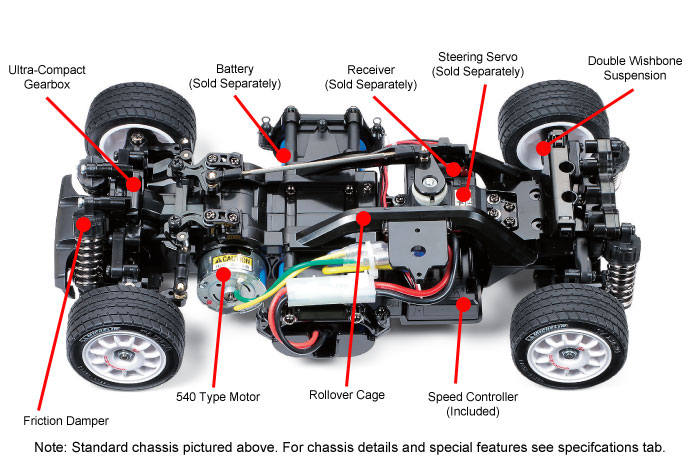

The Tamiya R/C model faithfully captures the fun and maneuverability of the real life subject as it comes on the proven M-05 M-chassis platform. The M-05 is a simple to build FWD (front wheel drive) machine, which allows for plenty of after-market parts to be outfitted as you grow with your skill. The lightweight, narrow semi-monocoque frame offers an optimized weight distribution and a low center of gravity. A ground-hugging 4-wheel independent double wishbone suspension and a 3-piece steering linkage ensure excellent stability during high-speed cornering.

M05_kit_standard



Three wheelbase lengths (210mm, 225mm, 239mm) are possible by simply switching the position of the rear suspension parts, enabling a wide range of body choices available from Tamiya.

Specification

  • Scale : 1/10
  • Construction type : assembly kit
  • Terrain use : on-road
  • Drive-train : 2WD FWD
  • Drive type : gearbox
  • Drive line : dog bone
  • Differential type : gear
  • Suspension : fully independent double wishbone
  • Steering mechanism : bell-crank
  • Shock damper : friction damper
  • Shock damper material : plastic
  • Tire type : rubber
  • Tire tread : radial
  • Body material : Polycarbonate
  • Chassis material : plastic
  • Electronic Speed Control (ESC) : included
  • ESC model : TEU-105BK
  • LED Light buckets : no
  • LED lights : no
  • Motor : 540-brushed type
  • Bearings : plastic bushing
  • Adjustable camber : fixed
  • Adjustable toe angles : front only
  • Adjustable ground clearance : yes
  • Adjustable gear ratio : yes
  • Adjustable wheelbase : yes
  • Adjustable track width : fixed
  • Adjustable shock angle : fixed
  • Special feature 1 : Low center of gravity design
  • Special feature 2 : 3-piece steering linkage
  • Special feature 3 : Servo, receiver and ESC are positioned at the rear for optimal balance
  • Special feature 4 : Adjustable wheelbase lengths: 210mm, 225mm, 239mm
  • Special feature 5 : Front mounted motor
  • Special feature 6 : Semi-monocoque frame

More at TamiyaUSA.com
