Schumacher Cougar KR 1/10th Competition 2WD

Schumacher Cougar KR 1/10th Competition 2WD

The new COUGAR KR is a professional, high performance 2WD racing buggy that has been designed especially for dirt and low traction surfaces.

Cougar_KR_side_1000

The KR is developed from the highly successful Cougar range of cars which have won countless races worldwide.

Cougar_KR_top_1000
The KR features a NEW gear diff, industry standard 12mm hex wheels, recessed alloy chassis and a new alloy anti-squat plate to name but a few!

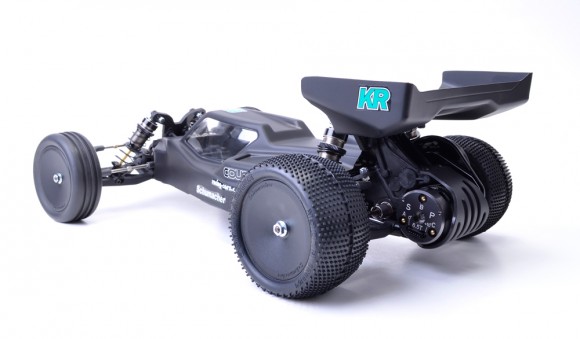

Cougar_KR_rtq_1000
It also now sports Schumachers new stealth black look, first seen on the superb CAT K1 4WD.

Cougar_KR_FTQ_NB_1000
The Cougar KR, designed for dirt, designed to dominate!



Cougar KR Specification Equipment Needed
  • 2 Channel Radio
  • Motor
  • Servo
  • Electric Speed Control
  • Tyres
  • Motor Pinion
  • Lipo Battery



Power Source: ELECTRIC
Model Type: 2WD, OFF ROAD, COMPETITION
Length: 370mm
Wheelbase: 277mm
Width: 240mm
Top Speed: 40 MPH+
Features
  • NEW Front Skid Plate – Reduces wear.
  • NEW Lower easy to assemble, wing mount system.
  • NEW All black anodised components.
  • NEW Gear Differential with hardened steel gears and super hard outputs.
  • NEW Hi-Tensile, revised style silver turnbuckles.
  • NEW Stronger front steering hub, with fine Kwik Klip Adjustment.

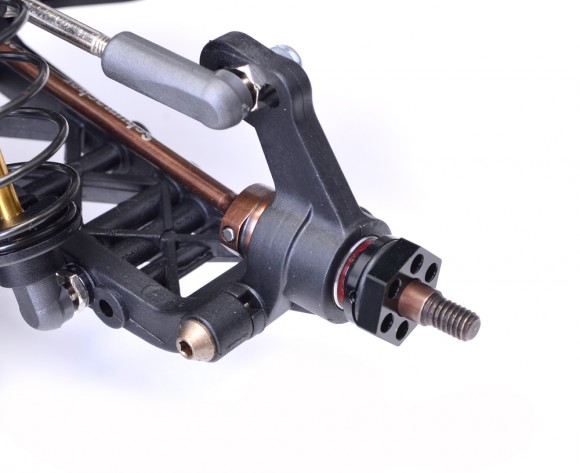

  • NEW 12mm Hex Wheels with clean look and industry standard offset.
  • NEW Super Strong 7075-T6 Alloy Anti-Squat plate.
  • NEW Recessed alloy chassis – Low centre of gravity for LiPo batteries & neater wiring.

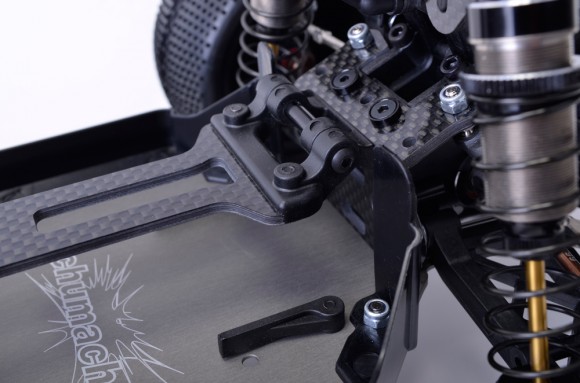

  • NEW Rear top deck mount – Optimised chassis flex.
  • Large range of front to rear battery positions – Allows weight distribution tuning for each track.
  • Moulded chassis sides – Fantastic dirt seal with no handling compromise.
  • Maximum dimension wing. Superb airflow control and max down force.
  • “Super Cool” 7075-T6 Alloy  motor plate. Offers a greater surface area and thickness, for improved cooling and rigidity.

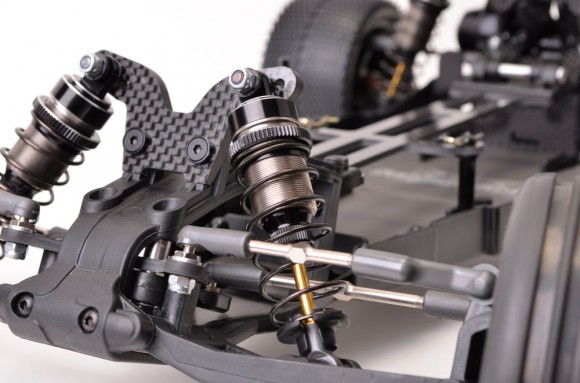

  • Pro spec 13mm big bore shocks with titanium nitride shafts, CNC machined 3 hole pistons with recessed ‘e’clips, threaded collars, twin O ring sealing and diaphragm volume compensation.
  • Longer front wishbones – Improved corner speed.
  • Stronger front bulkhead and bottom plate.
  • 24 piece “Red Seal” ball bearing set.
  • PTFE coated shock bodies – Hard, with a super smooth shock action.
  • CVA style driveshafts – Increased drive.
  • Excellent centre line balance.
  • Fully optimised suspension geometry – Fast, consistent handling.
  • Moulded gear cover for great spur gear protection.
  • Rear motor & three geared transmission – Excellent grip on low traction circuits

Cougar_KR_gear_diff_1000

Cougar_KR_ftq_1000





Cougar_KR_rear_hex_1000 Cougar_KR_fr_shock_1000 Cougar_KR_R_deck_1000 Cougar_KR_LTQ_NB_1000 Cougar_KR_rear_1000
