It’s long been known that suspension is critical for a vehicle’s handling on a track, but the internals of these shocks are often accepted blindly and stuck in old technology. Based on Full-Scale Valve Technology, this innovative MIP Bypass1™ Team Tuned Kit was designed and developed by the MIP racing and engineering team. The kit will elevate your suspension efficiency to a level that can be felt on the track and more importantly result in lower lap times. Instead of having the oil in your shocks react the same way in both compression and rebound, you can now tune those characteristics with MIP’s Piston in conjunction with MIP’s Valves (.003, .005, .007, .010) to produce favorable characteristics on the track. Keep in mind that since any piston is an object moving through a liquid, hydrodynamics can not be ignored. So if you are stuck in the ‘ol 2-hole, 3-hole, 1.6mm, yada yada days of standard pistons, now might be the time to evolve your ride with MIP Bypass1™ piston technology.

Specifically designed for TLR SCTE 2.0 based vehicles, tuning will reveal that there are infinite combinations and possibilities that the MIP Bypass1™ Team Tuned Kit provides. Typical to MIP products, quality is top notch and manufactured right here in the USA! Only bearing grade plastics are used for the pistons that were subjected to an exhausting series of dyno testing and on-track 1st place results. In fact the MIP Factory Team has over 20+ 1st Place wins at major events across the country in the SC 4×4 Class.   Specifically tailored to handle a spectrum of race conditions.  RealShocks.com. MIPonline.com.  Patents-pending USA and abroad.

FEATURES:
• Full Scale Valve Technology engineered for RC Race Cars!
• Precision machined pistons made from bearing grade plastics.

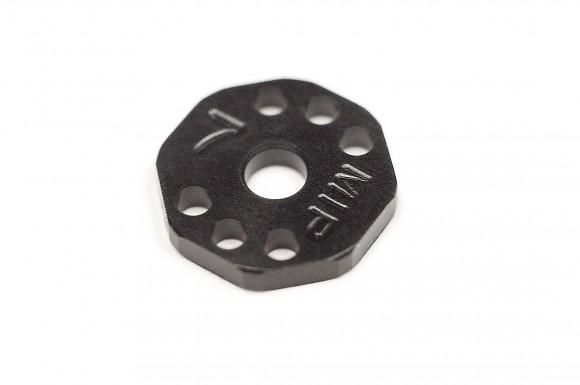

• Octagon shaped pistons reduce drag while keeping the piston guided in the shock bore!
• Dyno tested to match the rebound flow of stock pistons.
• Infinite valve adjustability!
• Comes with “Fast” “Medium” “Slow” & “Gap” Valves to tune your entire vehicle!
• 100% Quality made in the USA!

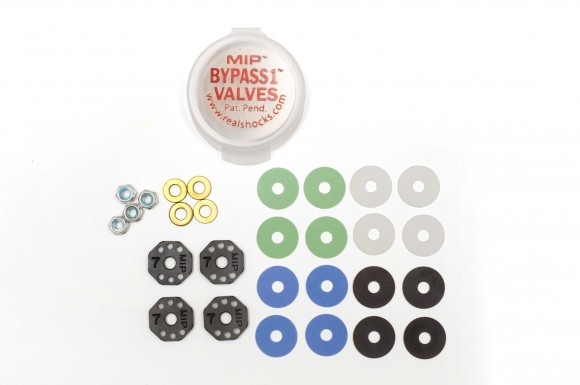

INCLUDES:
Stop Washer (4), Aluminum Locknut (4), MIP Bypass1 Piston #07 (4), Valve Cup, MIP .003″x .120x .43 #13 Valve Green (4), MIP .005″x .120x .43 #15 Valve Blue (4), MIP .007″x .120x .43 #16 Valve Matte (4), MIP .010″x .43 #17 Valve Brown, Instruction sheet, MIP confetti sticker, MIP Real Shocks decal sheet.
#13205 MIP BYPASS1™ Team Tuned Kit, TLR SCTE 2.0:
MSRP: $32.00
UPC# 691545132051

COMPATIBILITY:
TLR 2.0, Losi 1.0, MIP Pro4mance Package

SUPPORT PRODUCTS:

#12123    MIP BYPASS1™, #4 Pistons (2)                     MSRP:  $10.00        UPC: 691545121239

#12124    MIP BYPASS1™, SW4 Stop Washer (2)          MSRP:   $3.00         UPC: 691545121246

#12125    MIP BYPASS1™, #13 Valves, .003 Green (6)   MSRP:   $6.00         UPC: 691545121253

#12126    MIP BYPASS1™, #14 Valves, .004 Tan (6)      MSRP:  $6.00          UPC:  691545121260

#12127    MIP BYPASS1™, #15 Valves, .005 Blue (6)      MSRP:  $6.00         UPC: 691545121277

#12128    MIP BYPASS1™, #16 Valves, .007 Matte (6)    MSRP:  $6.00         UPC: 691545121284

#12129    MIP BYPASS1™, #17 Valves, .010 Brown (6)   MSRP:  $6.00         UPC: 691545121291

#12130    MIP BYPASS1™, #18 Valves, .015 Pink (6)      MSRP:  $6.00         UPC: 691545121307

*Not Responsible for typographical errors
