AVID Associated Carbon Fiber ESC Shelf with Standoffs

The AVID Carbon Fiber ESC Shelf takes conventional ideas one step further with our innovative slotted design.  The AVID design team created a versatile system that works with both stick and shorty battery pack types, as well as allowing for all popular battery brands/models.  Racers can buy the ESC shelf “a la carte” or buy a set with 4mm Steel or Titanium threaded standoff posts.   The sliding design with standoffs is simple and easy to use,  with no stacks of washers to deal with when working on your car.

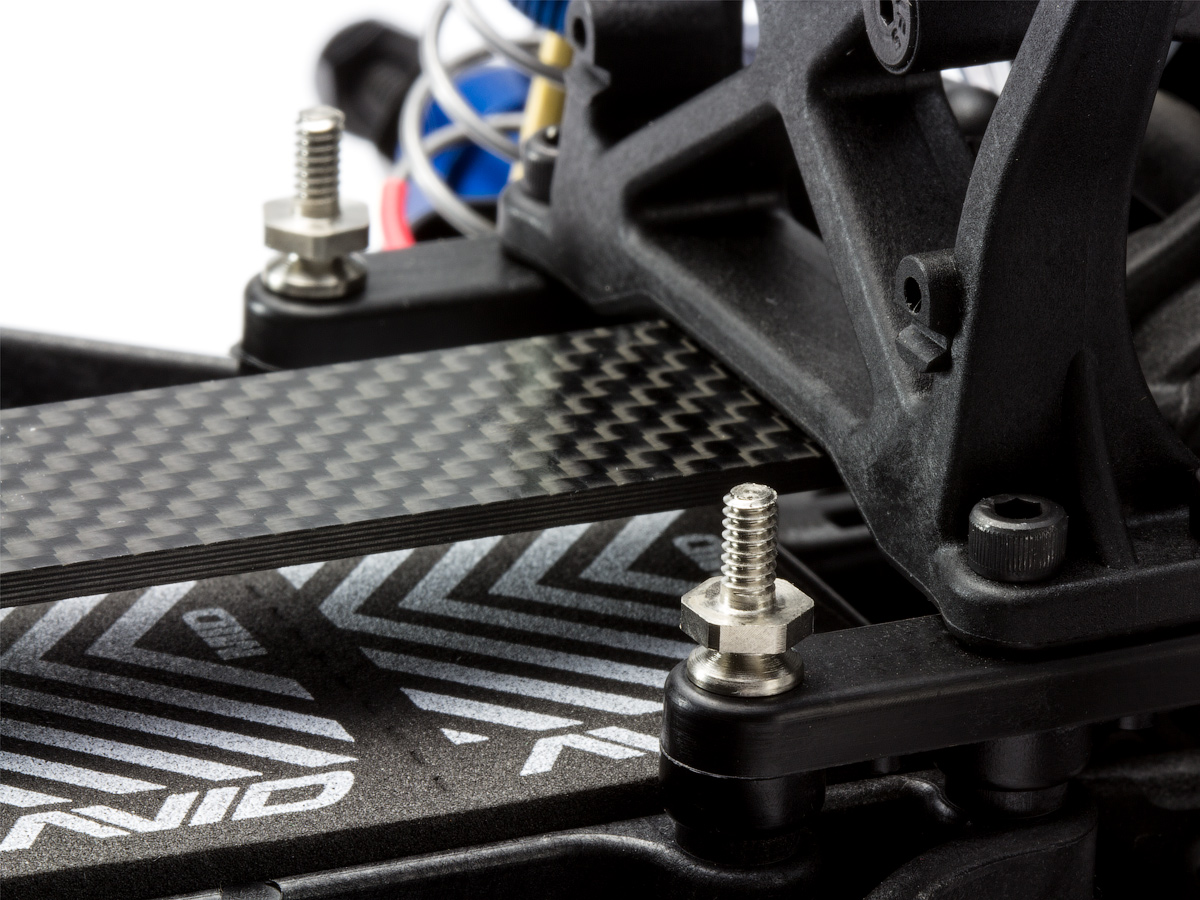

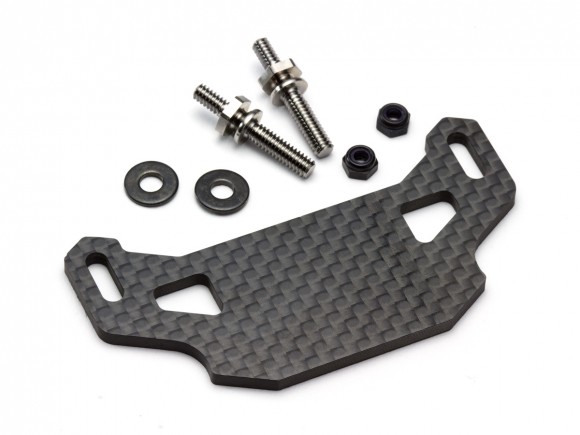

AV1021-SET_5_media AV1021-SET_3_media

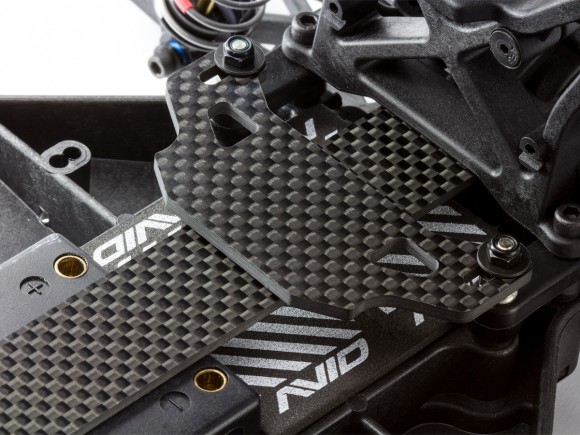

AV1021-SET_1_fwd_position_media

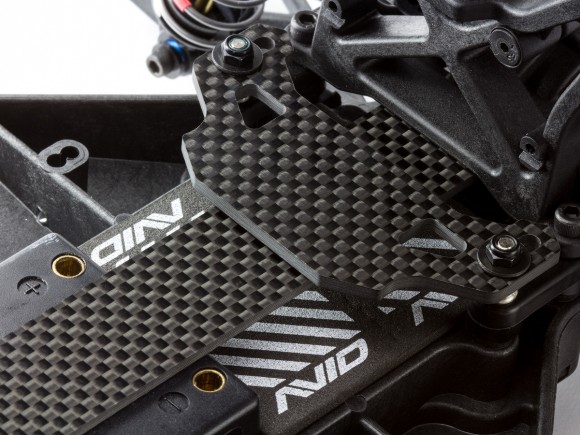

AV1021-SET_2_back_position_media

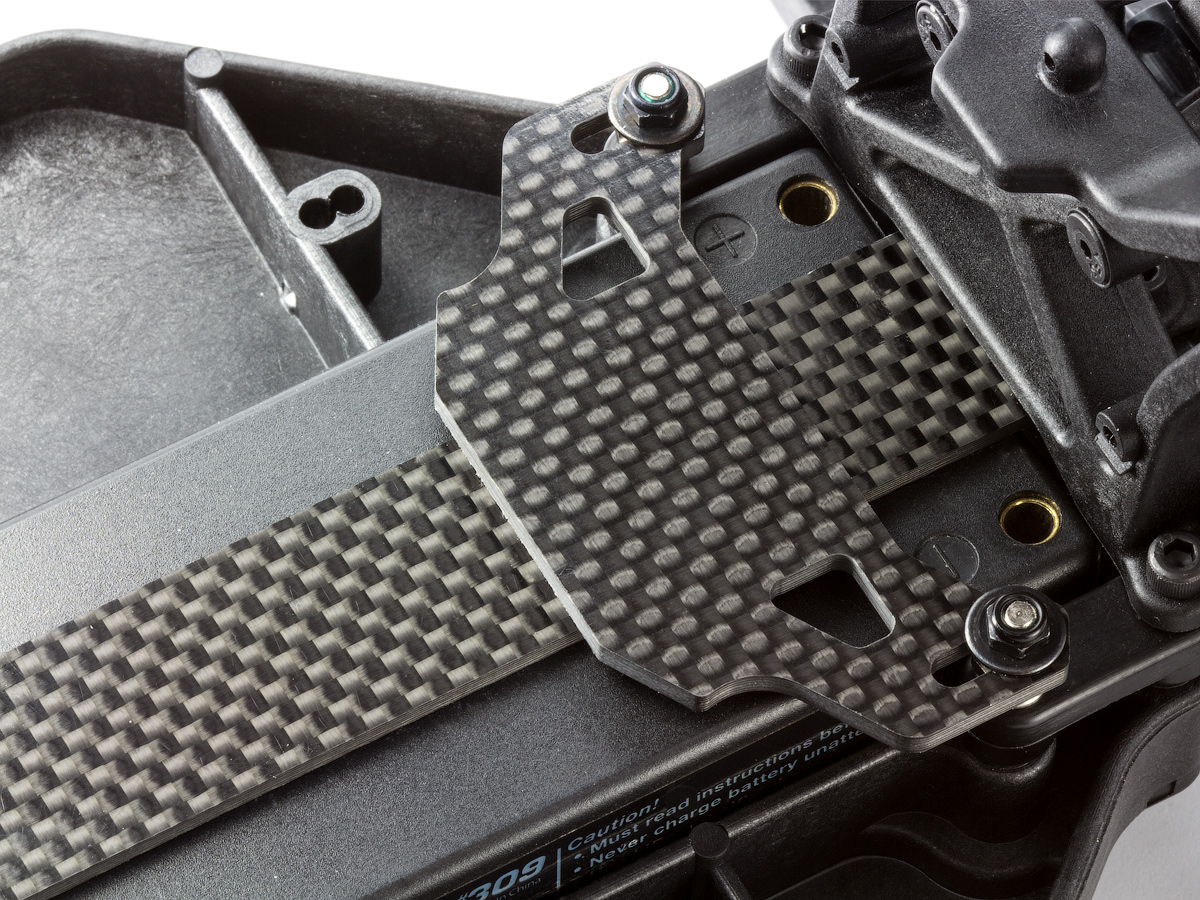

AV1021-SET_7_media

In addition to shifting the ESC weight onto the centerline of the car, the AVID slotted design lets racers run the ESC as far forward as possible, preventing too much rear weight bias which makes for poor handling.   The AVID design also lets stick pack racers run the bullet plugs in the rear for short wires and to keep the weight of the cells forward.   Our testing shows that these small changes make a big difference in handling and consistency lap to lap.

  1. Moves ESC weight on center and closer to the car CG to help the car rotate through the turns while maintaining stability.

  2. Sliding tray allows for moving the speedo for different battery type and different track conditions  (forward = high grip, back = low grip).

  3. Clearance for longer full-size battery packs with bullet plugs in rear.  Racers wanting a lower height should buy the shelf only (AV1021-SHELF) and use existing screws.

  4. Sets have machined 4mm tall standoffs with ¼” hex which replaces the 5-40 screw.

  5. Also sold separately.  Each set includes 1ESC shelf, 2 Standoffs, 2 x 4-40 nuts and washers,  1 AVID mini decal sheet.   Fits:  B4.2, T4.2, SC10.2, SC10B



Part Number

Description

Includes

Price

Available

AV1021-SET-ST

Associated Carbon ESC Shelf Set (with steel standoffs and nuts)

Shelf, 2 standoffs, hardware

$18.00

Aug 2

AV1021-SET-TI

Associated Carbon ESC Shelf Set (with Ti standoffs and nuts)

Shelf, 2 standoffs, hardware

$26.00

Aug 2

AV1021-SHELF

Associated Carbon ESC Shelf

Shelf only

$11.00

Aug 2

AV1021-STANDOFF-ST

Associated ESC Shelf Standoff, Steel

2 standoff, 2 nuts, washers

$7.00

Aug 2

AV1021-STANDOFF-TI

Associated ESC Shelf Standoff, Ti

2 standoff, 2 nuts, washers

$15.00

Aug 2
