Team Durango DESC210R Kit Build Up

What am I doing? Well I wanted to show you how the truck is put together for mid motor. This requires a little disassembling. First off with the bracing.

Next take out the transmission.

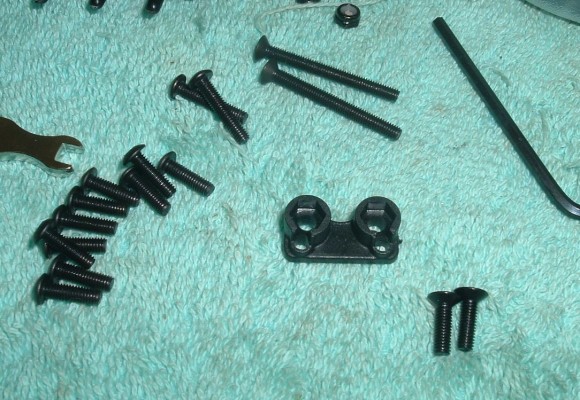

Keep all the screws organized as you will be using some of them again.

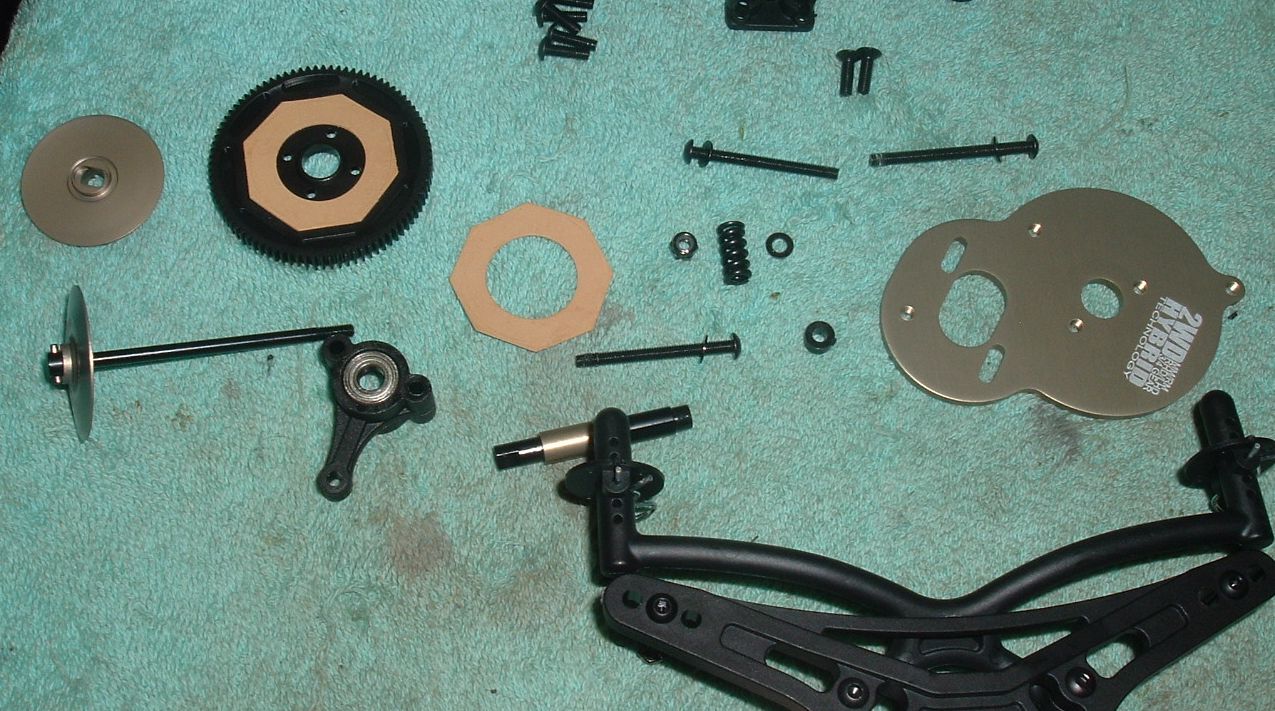

Take the motor plate and slipper off the tranny as well as the shock tower.

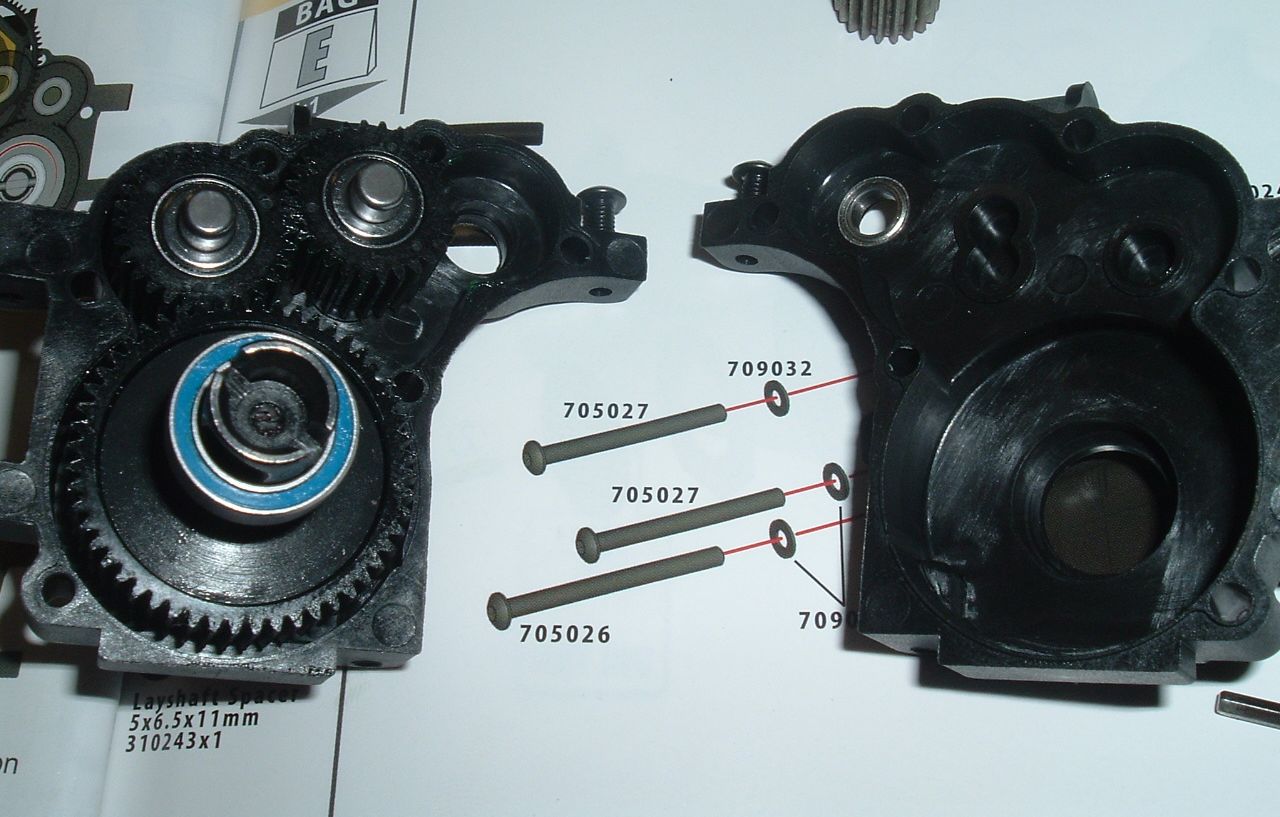

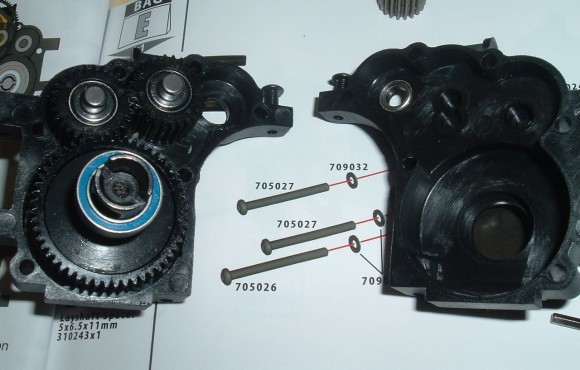

Sorry not a good pic to show what actually have to do. You have to take out the top bearing from one side of the case and place it in the other side. Then reassemble the tranny.

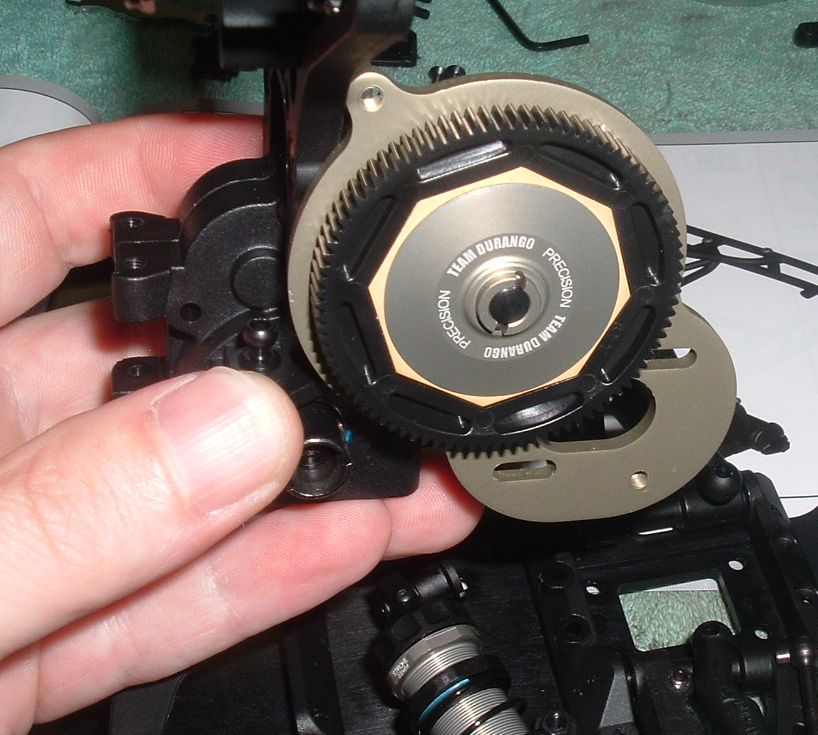

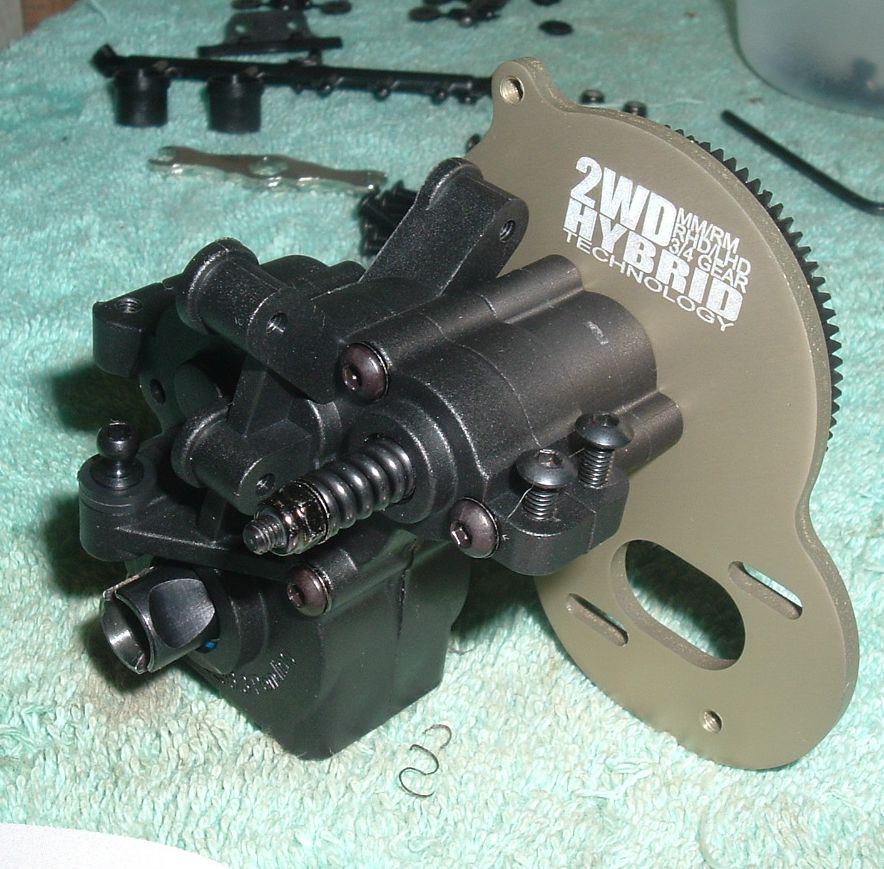

Now the plate is on the other side.

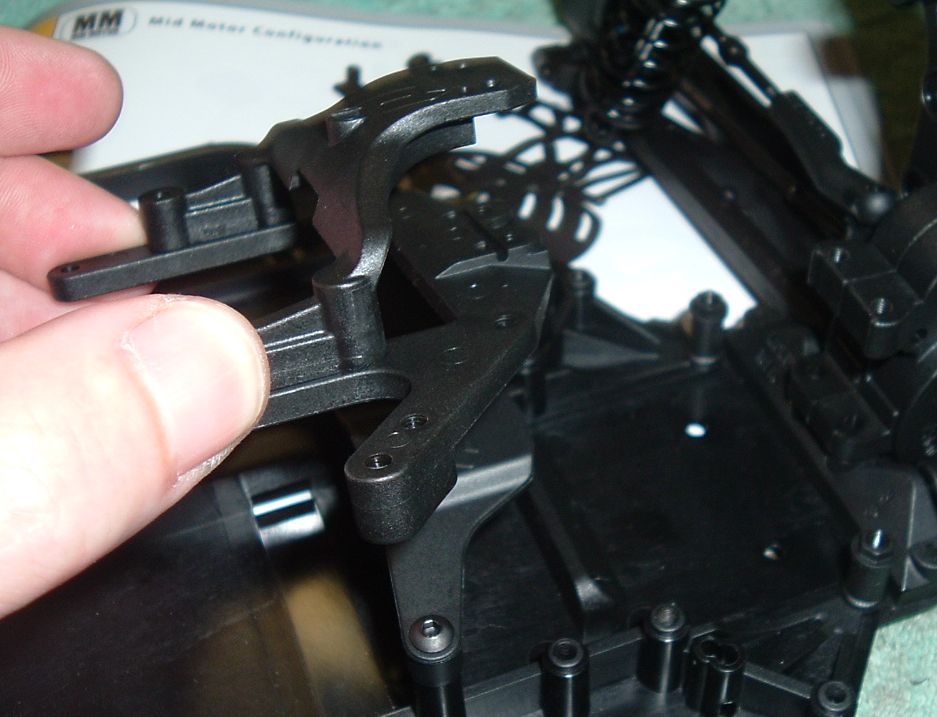

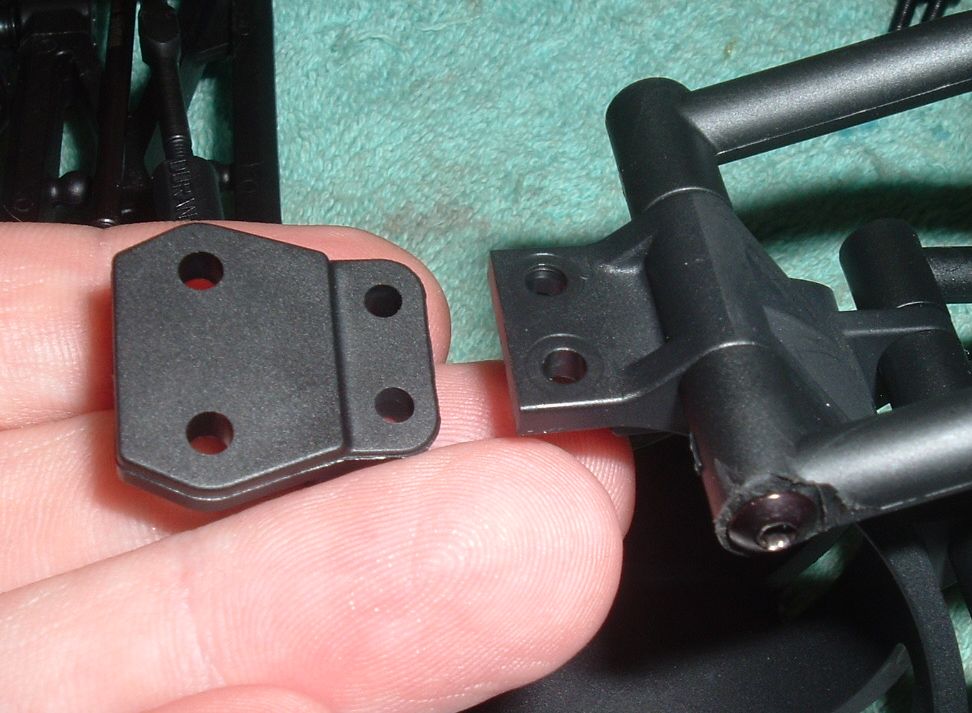

This piece is an extension for the motor guard.

Here you can see the the new bracing in the truck.

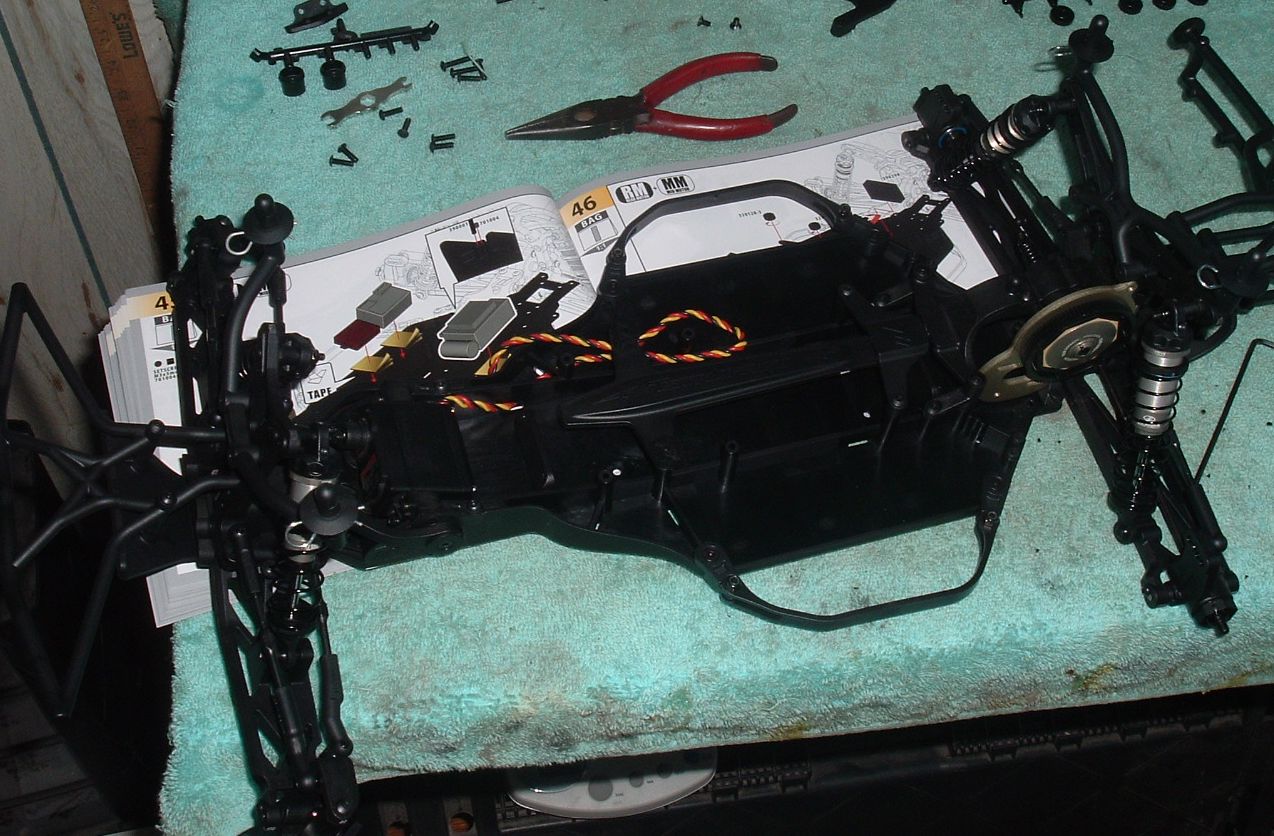

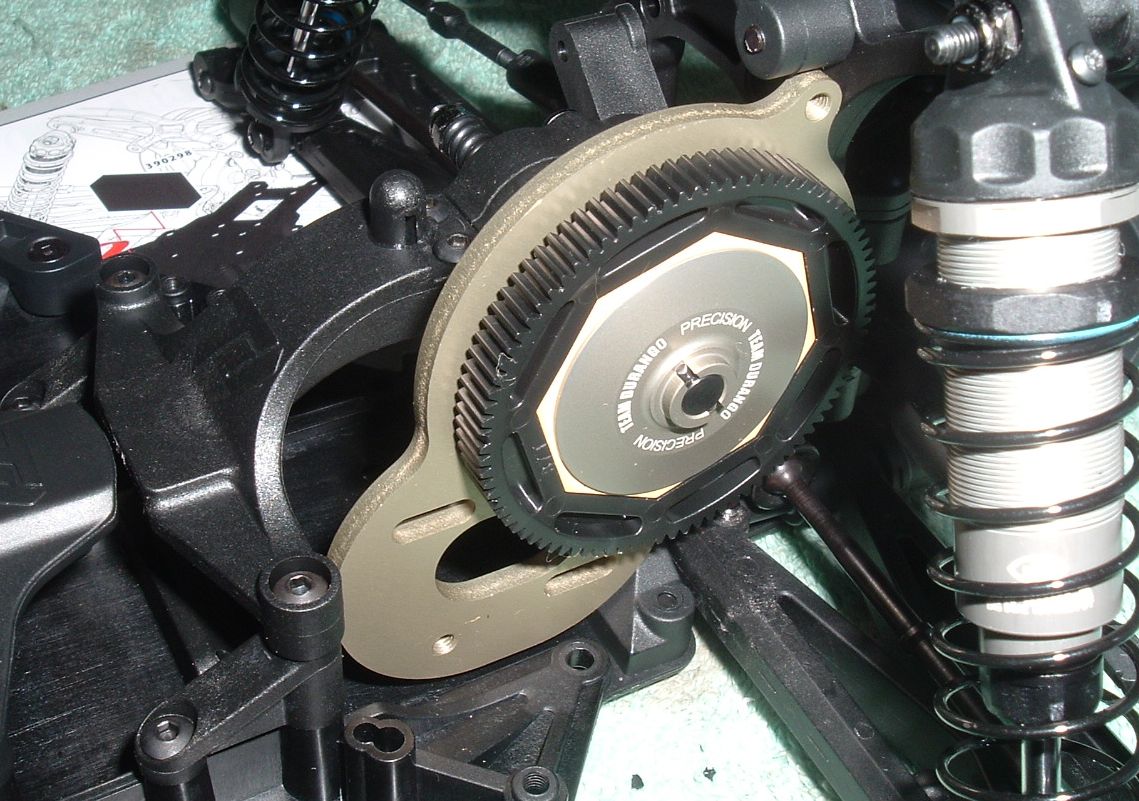

Here we have the truck set up mid motor 4 gear. The time it takes to change from mid to rear motor or rear to mid motor is a little longer then I liked. I am not sure I would do this at the track unless it was a big event and I had time to spare.

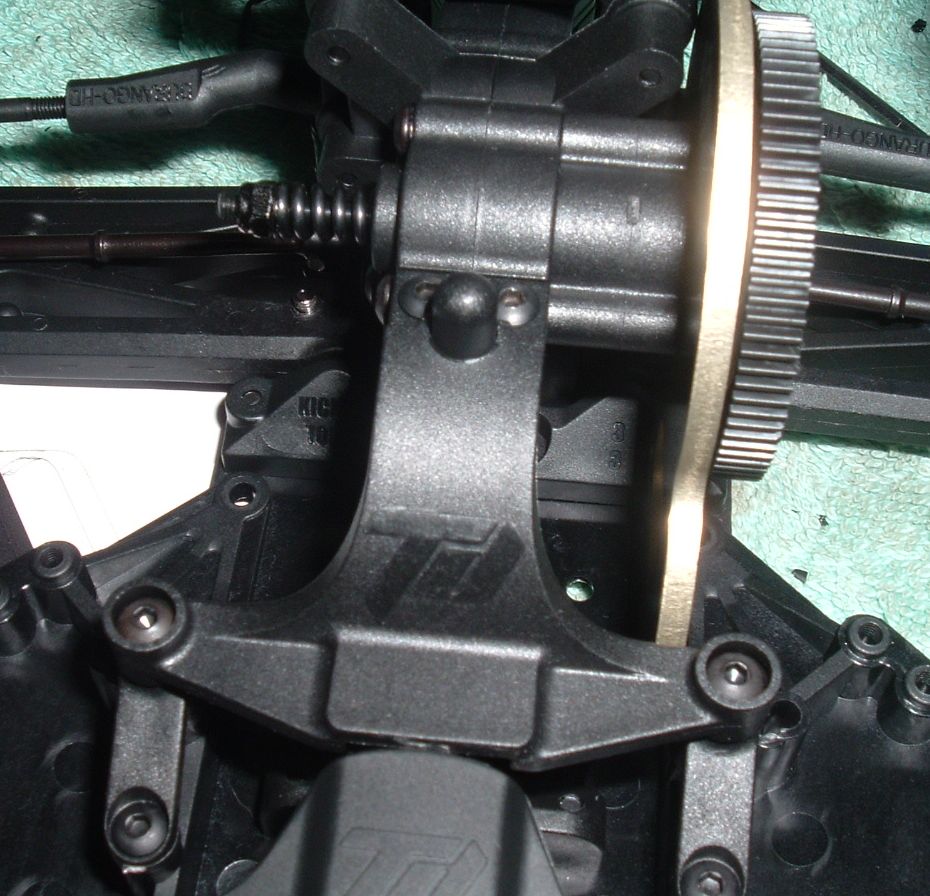

A close up pic of the rear bracing.
