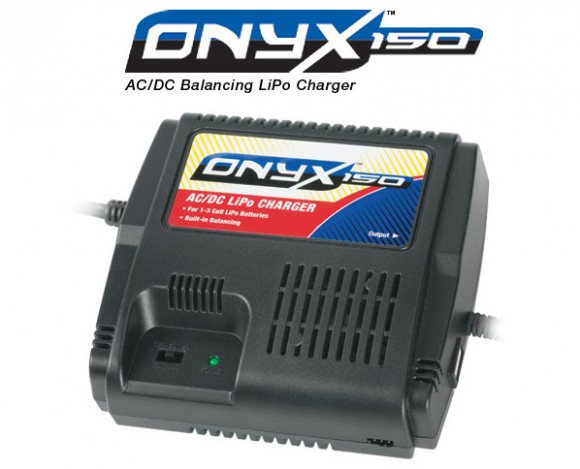

Duratrax Releases the Onyx 150 AC/DC Balancing LiPo Charger

The Duratrax Onyx 150 AC/DC Balancing LiPo Charger was designed for the modeler looking for budget-friendly, balanced charging for 1-3S LiPo packs. A tiny built-in power supply makes it easy to take along. Once the Onyx 150 is plugged in, all the modeler needs to do is hook up a pack and set the charge rate. The Onyx 150 starts and stops automatically – features a multi-color LED for reading charge status at a glance.


Features

  • Charges 1-3S LiPo packs to maximum voltage, and balances with +/- 5mV accuracy
  • Includes a compact switching power supply for AC/DC charging convenience
  • Perfect for packs with Deans Ultra Plug or Traxxas High-Voltage connectors
  • Offers switch-settable charge rates, sound cues for setup ease and a tri-color LED for status updates
  • Custom cc/cv charge profile ensures maximum voltage and prevents overcharging
  • Includes 90-minute safety timer and a built-in cooling fan
  • Protected with solid-state reverse polarity and current overload circuitry
  • Includes a balancing port for balancing and charging 3S packs, plus an adapter for 2S packs.
  • 5-year limited warranty.

Specifications:
AC Input: 110V 60Hz
DC Input: 11-15V
Battery Type: 1-3 LiPo cells (3.7-11.1V) only
Battery Capacity: 100-7500mAh
Fast Charge Current: 1.5A, 3.0A & 5.0A (50W)
Output Connections: attached leads w/Deans® Ultra Plug® connector, Traxxas® adapter & universal radio jack (for 1-3S LiPo packs)
Input Connections: attached AC lead and detachable DC lead w/alligator clips
Case Size: 5.3 x 5.0 x 1.9 in (133 x 127 x 48 mm)
Weight: 12.6 oz (356 g)

TRAXXAS is a registered trademark of TRAXXAS Corporation. All trademarks are the property of their respective owners.

The Onyx 150 is available now.

DTXP4195      Onyx 150 AC/DC Balancing LiPo Charger            Retail: $79.99 Street: $54.99
