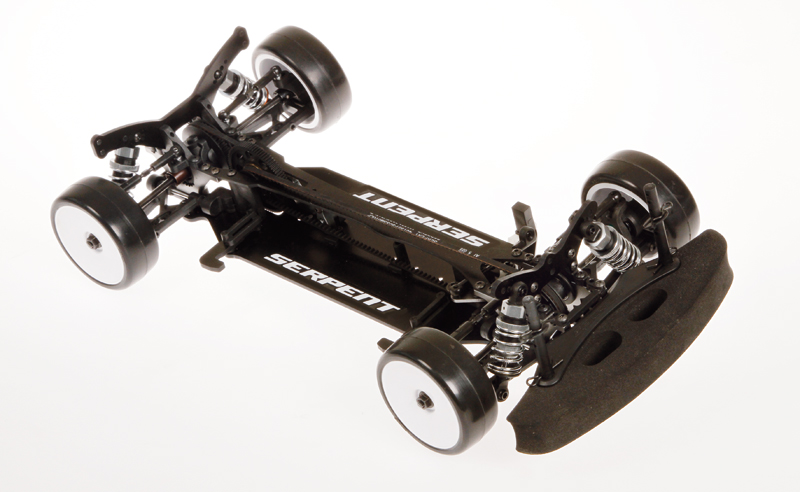

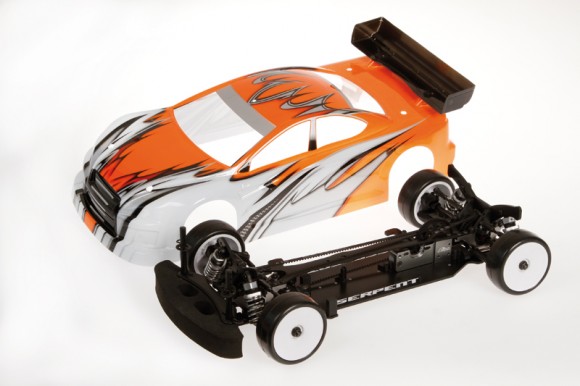

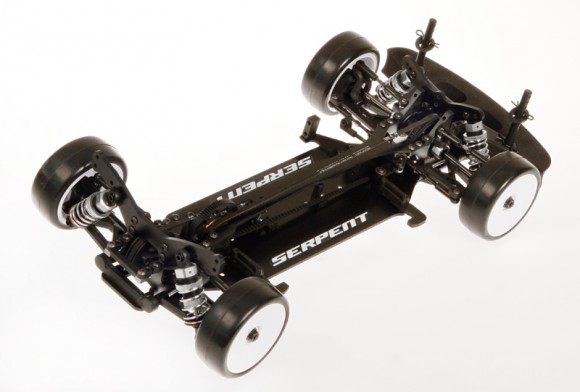

Serpent’s club level touring car racer, based on the successful 411 race platform.

Main features
– 4 wheel-drive, belt-driven
– Independent suspension with latest RCM shocks
– Black glass-fiber chassis, top-deck and shock towers
– Rear gear differential, race spec
– Front lightweight spool
– CNC machined aluminum motor mount

All parts and options of the race version of the Serpent 411-TE fit to this Sport level car, so fully upgradable.

Features

Chassis
Supernarrow, symmetrical , durable black glass-fiber chassis plate with optimized flex design, countersunk holes, central section holes all perfectly in center, pockets for gear diff, spool and spur.

Topdeck
Durable black glass-fiber topdeck with optimized flex design.
Battery-mount brackets and Lipo-holders
Easy to use nylon batter tape holder, which allow the battery tape to run over instead of under the chassis.
The holders can be reversed for other battery position. The Lipoholders will securely keep the Lipo in place,
also at hard impact.

Servo-mount
The servo is mounted on a separate plate, so flex is less influenced.

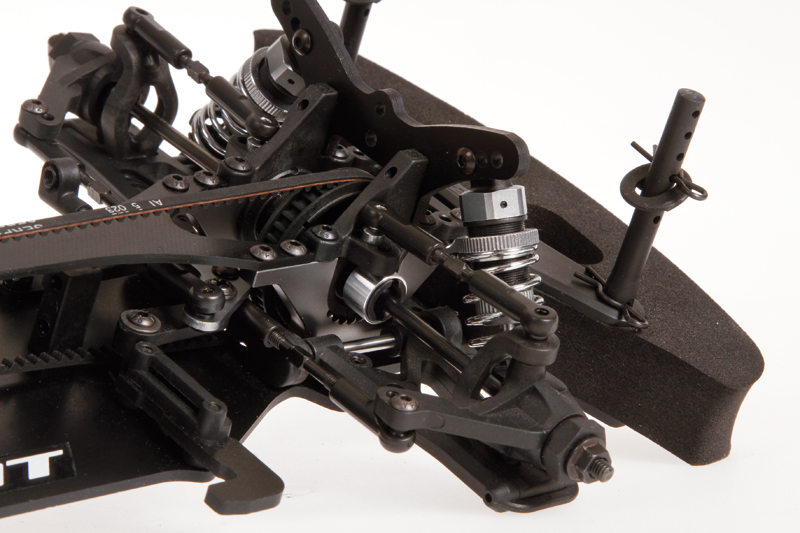

Shock tower front
Black glass fiber shock tower with 3 upper shock mounting holes to choose from . Holes for an extra central bodypost are already made as well.

Front bracket
Machined aluminum front brackets, with belt tension adjusting through excenters. Suspension brackets in durable nylon.

Front suspension
Durable lower front wishbones connected to the inner brackets with strong steel pivot pins. An anti-roll bar system can be mounted as option.

C-hub / steering block
The c-hub type front system creates a super precise steering feeling with great feedback, and strong wheel guidance without chatter.

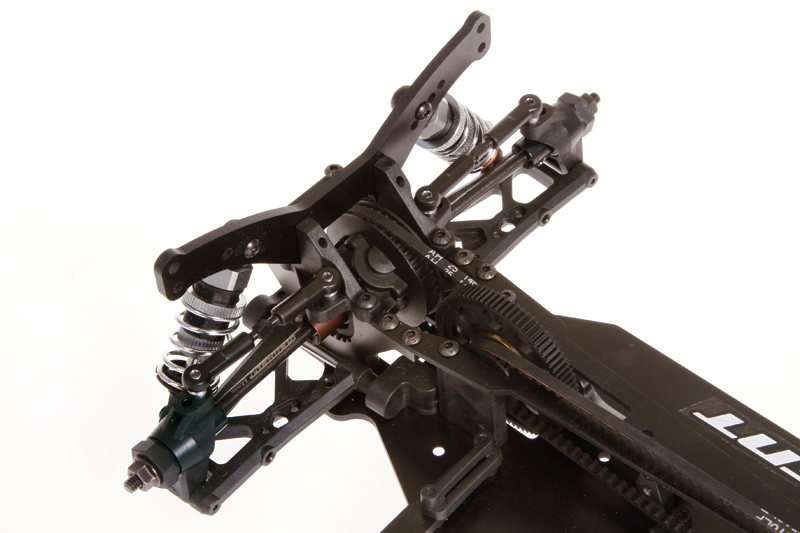

Shock tower rear
Black glass fiber shock tower with 4 upper shock mounting holes to choose from . The rear body posts are mounted to the top of the rear shock tower.

Rear bracket
Machined aluminum rear brackets, with belt tension adjusting through excenters. Suspension brackets in durable nylon with 3.0 RR RR and split type 0.0 blocks RR FR

Rear suspension
Durable lower rear wishbones connected to the inner brackets with strong steel pivot pins. An anti-roll bar system can be mounted as option.

Rear upright
Strong rear uprights with 2 upper positions, for perfect guidance of the rear wheels.

Motor mount
Machined aluminum motor mount / middle shaft support.

Middle shaft
Ballraced middle shaft with 2 small pulleys and the main Serpent spur gear.

Bumper
Large foam front bumper captured by a upper and lower nylon bumper

Body mount
Front body mount is mounted through the front bumper, and the rear ones are seated on the shock tower. Multiple body position holes to choose from.

Gear-diff
Very compact ballraced gear differential in the rear, with steel gears and axles for durability. Super smooth.

Spool
Front nylon lightweight spool with screw mounted front gear pulley

Transmission / belts / pulleys
Smooth low friction fine pitch belts combined with optimized nylon pulleys

Driveshaft / wheelhex / wheelaxle
Steel driveshafts, combined with ballraced wheelaxles and nylon wheel-hex adapters

Steering system
Steering system with optimized ackermann for neutral steering-feeling.

Shock absorbers
Latest type RCM competition shock absorbers with membranes and checked color coded race springs.

Ball-bearings
Fully ballraced with oiled high speed sealed stainless steel bearings.

Manual and decals
Full color assembly manual which shows clearly all assembly steps, has all exploded views for easy parts-finding and detailed list with spare parts and options. Decal-sheet with Serpent and 411 logo’s are included as well.

Packing
The 411 Sport comes in a strong small carton box with full color printing.

Options / upgrading
The Serpent 411 Sport is based on the high end race version of the 411. All parts from the 411 race-version and also all options, also fit the 411 Sport. This allows you to upgrade your 411 Sport to a higher level race spec step by step, with the parts you select. The 411 Sport parts manual shows those parts, and you can find them in the options section of the 411 Sport as well.
