A few weeks ago, we brought you news that Axial Racing had been teasing a new kit. At that time, only conceptual drawings and a few spy shots had been released. Axial has officially announced the EXO 4wd Terra Buggy.

Axial’s R&D team started with a clean slate and took an in depth look at the off-road desert scene before starting the EXO™ Terra Buggy project. The design concept was simple, if money were no object and we could build any full size rig we wanted, what would it be? Trophy trucks are awesome, Class-1 buggies are just as cool, but you only get to take along one friend. Then there is the sand and silt out in the desert, no one likes to get stuck, and 2WD Trophy Trucks and Class 1 rigs are always buried to the belly pan, so we need 4 wheel drive.  Then there are 4 seat sand cars that accommodate you and 3 friends, but they don’t usually work that well outside of the sand dunes. The decision was made to marry the best of all worlds into one vehicle that can tackle even the harshest terrain in style with 3 of your closest friends. Yes, we know the EXO does not exist in the full size world, and that is exactly what we intended – TO DREAM BIG, and make it an R/C reality!

The Axial EXO™ Terra Buggy Born out of the desert, the worlds harshest terrain, ready to hit any terrain you throw at it with all-out, high speed performance! The Axial EXO Terra Buggy is tons of FUN with the ability to tame even the harshest environments, from gritty sand dunes to suspension clapping rough whoops!

This is the ‘black art” of what makes a vehicle fast in the desert. There are many components that have to work in harmony make the suspension work like a rock star! Threaded shock bodies, multiple shock positions front and rear, adjustments for toe, kick-up (rear), camber, roll center and ackerman allow you to fine tune your suspension for high performance and high speed handling.

Features

Axial’s patent pending quick release battery mount is easily adjustable to fit any battery pack. The flexible rubber straps are connected to a hinge on one end and the other contains a pin that keys into a composite plastic latch that keeps your battery securely in place. There’s also an integrated “lift assist” mechanism which puts the battery in the best position for removal. The lower plastic end plates are adjustable which allow you to fit any battery pack, and in most cases, two batteries will fit standing on edge. The motor position is centered lengthwise and battery is positioned towards the center for balance and stability.

























The EXO™ utilizes standard 32 pitch pinion and spur gears to provide more tooth surface area for durability and efficiency to put its power to the ground!

Three, silicone oil-filled differentials transfer power to all four wheels and because they’re oil-filled they can be fine tuned with optional oil. Each differential features four sintered gears housed in compact differential cases. This also allows the EXO™ to use compact and streamlined bulkheads for reduced weight, meaning less rotating mass for higher performance.

Our patent pending adjustable motor mount included with the EXO™ features a two piece design that allows you to easily set your gear mesh with an adjustment screw providing the ability to achieve a perfect fit. A set screw is used to securely lock the two piece motor mount in position. The two piece mount is also keyed for proper alignment and strength.

The EXO utilizes steel steering posts, an aluminum steering rack, and an aluminum servo saver retaining system with captured bearings to keep you pointed in the right direction. The entire steering system also leans back 10 degrees to match the front kickup which eliminates all bumpsteer.

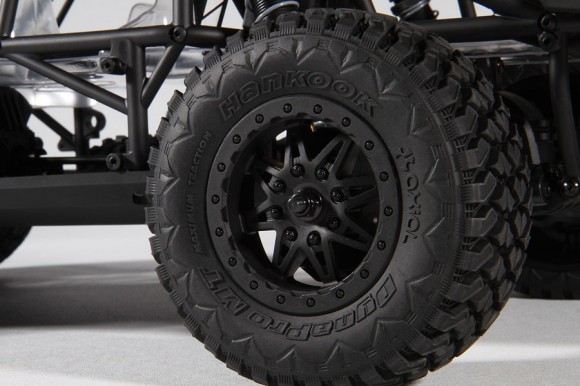

Raceline is by far the most popular wheel for extreme duty off-roading. Their ability to stand up to the abuse demanded by the full-size racer and their show quality finish is second to none. The officially licensed Raceline Renegade gives the EXO™ that authentic racing look as well as providing the strength to handle whatever you can dish out! The EXO™ features realistic, officially licensed Hankook Dynapro MT tires that perform as good as they look. The front tires are narrow (34mm) which help the EXO™ navigate the terrain while the rear tires are wide (41mm) putting the power to the ground with enough traction to keep the EXO™ firmly planted. Internal ribbing helps reinforce the sidewall to prevent it from folding over which keeps the tires working at peak performance.



























Threaded shock bodies, multiple shock positions and adjustments for toe, kickup (rear), camber, roll center and ackerman allow you to fine tune your suspension for high performance.



























Finding the right spring rate can be tough. Axial made it easy for you by including what we found to be the right balance of high speed and harsh terrain handling. The spring rate they’ve chosen keeps the EXO™ on course and ready for your next obstacle!



























The captured double shear shock mount features an aluminum plate that keys into the molded cage for added strength.



























The cage closely resembles what you’d find on 1:1 vehicles making this a strong and proven tough design that keeps the EXO™ well protected.



























The 4mm center chassis is made from 6061 aluminum for durability and features recessed pockets to lower the center of gravity.



























The chassis tub is tapered to give you an extra 1/2″ of ground clearance.

































The stub axles are held in place by two bearings, an outer small bearing, and a large inner bearing. The larger inner bearing increases durability and stability. The steering pins are titanium nitride coated for less wear and durability. The axle is mated to a standard 12mm cast aluminum hex hub.



























The front and rear bumpers are hinged which allow them to flex upon impact, protecting the EXO™ from crash damage. Aluminum skid plate inserts add an extra level of protection and feature an embossed surface for added style.



























Axial has chosen a variety of parts that keep the EXO™ durable and performing at a high level. These include steel turnbuckles, steel dogbones, steel outdrives, captured stainless steel hinge pins, full ball bearings, titanium nitride coated shock shafts and steering pins and a sintered steel pinion gear.



























The chassis has plastic routing clips throughout which helps keep your receiver and servo wires snug and away from moving parts which could shred the wires.



























Axial’s waterproof receiver box keeps your radio gear protected from the elements and with integrated wire management, it keeps the receiver leads organized and away from moving parts.

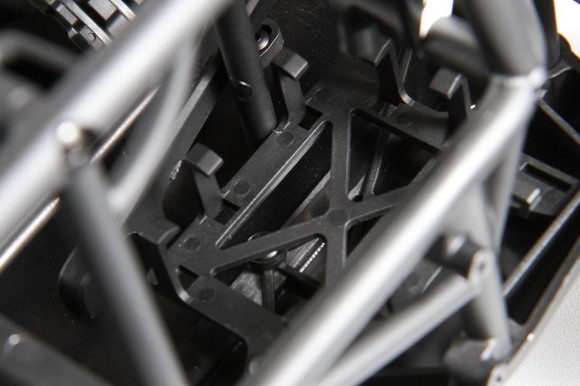

They include three ESC mounting plates. Securely clip in your Castle SV2, or Novak Havoc SC ESC’s with our patent pending ESC mounts. Running something different? Then use the included universal servo mount plate and standard servo tape.



























Brighten up your night time driving session! The integrated light bar holds up to five LED lights and features clear plastic lenses and three styles of mesh covers – plain, Axial and officially licensed PIAA covers! (LED lights not included)

























The built-in rear diffuser/wing has embedded rear marker light buckets for up to four LED tail lights (LED lights not included). (Axial’s optional LED light system: AX24257 Simple LED Controller will get you set up with four lights up front and two in the rear.) For the ultimate light setup, try their NVS (AX24251 Night Vision System) which includes a wide variety of lights and a system for controlling them.

Realistic fan blade and grille cover details.









The EXO™ features a variety of fully licensed, realistic features including a V8 Turnkey engine, a Fuel Safe fuel cell and an interior body set with four Corbeau race seats.

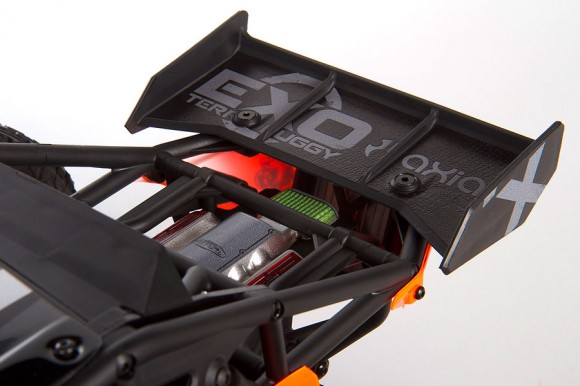

Molded plastic wing.

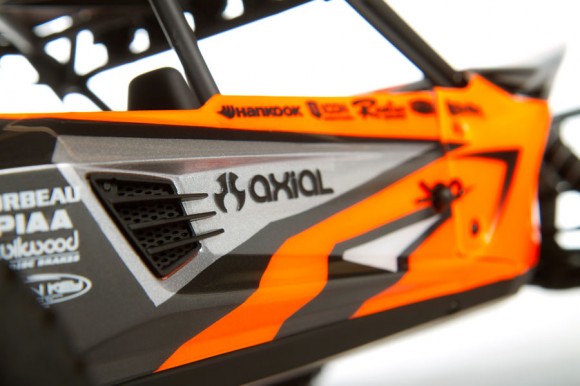

Highly detailed polycarbonate body with integrated plastic side vents.





































OVERVIEW

SPECS

CHASSIS
Wheelbase:	343mm (13.5″)
Length:	482.6mm (19″)
Width:	295.3mm (11.6″)
Height:	228.6mm (9″)
Ground Clearance:	76.2mm (3″)
Weight (no electronics):	2.22kg (4.9 lbs”)
For maximum performance, we recommend a 540 or 550 sized brushless motor. · Minimum 4 pole 540 recommended (3300KV or more) · Maximum 550 4.5T recommended
